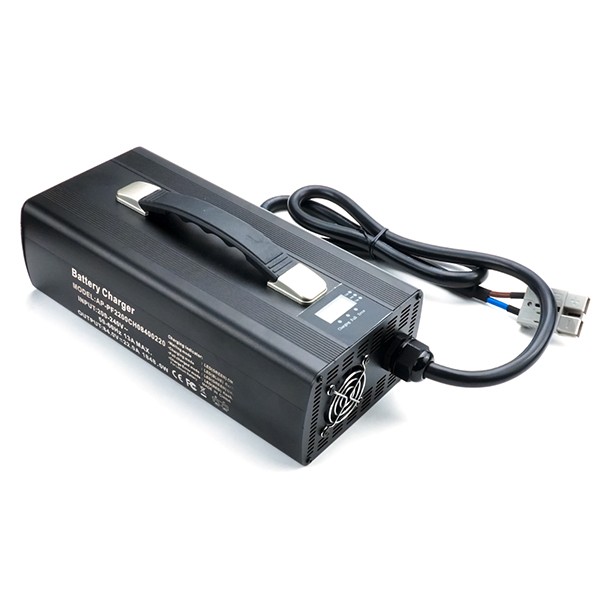

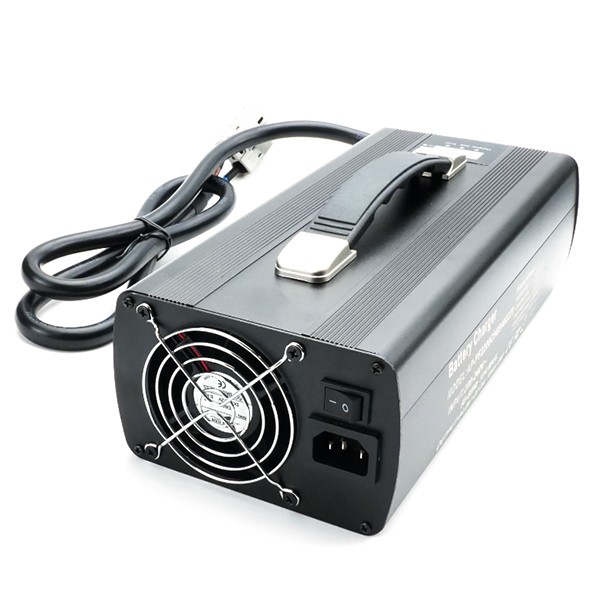

72V 14A Aluminum Charger with Cooling Fan | CE/UL/FCC Certified for E-Scooters, Golf Carts & AGVs | Fireproof, IP20, 2-Year Warranty

1.Output Voltage: 72VDC ±1%
2.Rated Current: 14A Continuous
3.Input Voltage: 100-240VAC 50/60Hz
4.Conversion Efficiency: ≥92%
5.Global Certifications: UL 1310 / CE EN 60335 / FCC Part 15 / RCM
6.Over Voltage Protection
7.Reverse Polarity Protection
8.Smart Thermal Control
9.Waterproof: IP20
10.Environmental: RoHS
11.Withstands 40℃ ambient temperature at full load
12.24 Months Global Warranty
13.Laser Logo Engraving + 5 Cable Colors
14.Custom Voltage & Plugs

Product Parameters

Input Volt:100-240VAC 50HZ/60HZ		CVCC
Efficiency	92%		Leakage A	<3.5mA
Operating Humidity	5%-95% RH Non-condensing		Altitude	2000m
Operating Temperatue	-10℃—+40℃		Storage Temper	-40℃-+85℃
Safety Certification	FCC,KC,PSE,GS,RCM,UKCA,UL,CCC,CE,CQC,EESS
Suitable battery Type	Lead Acid/LiFePo4/Li-ion/Lipo/Nicd/Nimh/Sodium etc, OEM &ODM
Power on srate	LED is green light
Charging state	LED is Red ligh
Protection	Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity
Output short circuit	The charger will automatically shut down when a shotcircuit occurs on the charger output.			Switch AC power back on and off to restore output
Outprt overvoltage protection	When the DC output voltage≥1.05^*Vout,the charger turms of the outpur.			Switch AC power back on and off to restore output
Output overcurrent protection	When the charger output current ≥1.1*Iout,the charger tums off the output.			Switch AC power back on and off torestore output
Reverse polarity pprotection	When the battery's positive and negative terminals arereversely connected to the charger output, the chargerwill automatically shut down.			Switch AC power back on and off torestore output
Advantage	Low surge current, flyback input full voltage, small output voltage ripple OEM,ODM,5 years warranty Benbv Tech co.,ltd
Package Contents	The packing box contains the product name, model, manufacturer's logo, inspection certificate from the manufacturer's quality department, and the date of manufacture.

Specification and model

LiFePO4	14.6V70 A	29.2V40A	43.8V27A	58.4V20A	73V16A	87.6V14A
lithium battery	12.6V70A	29.4V40A	42V27A	54.6V20A	71.4V16A	84V14A
Lead-acid	12V70A	24V40A	36V27A	48V20A	60V16A	72V14A
