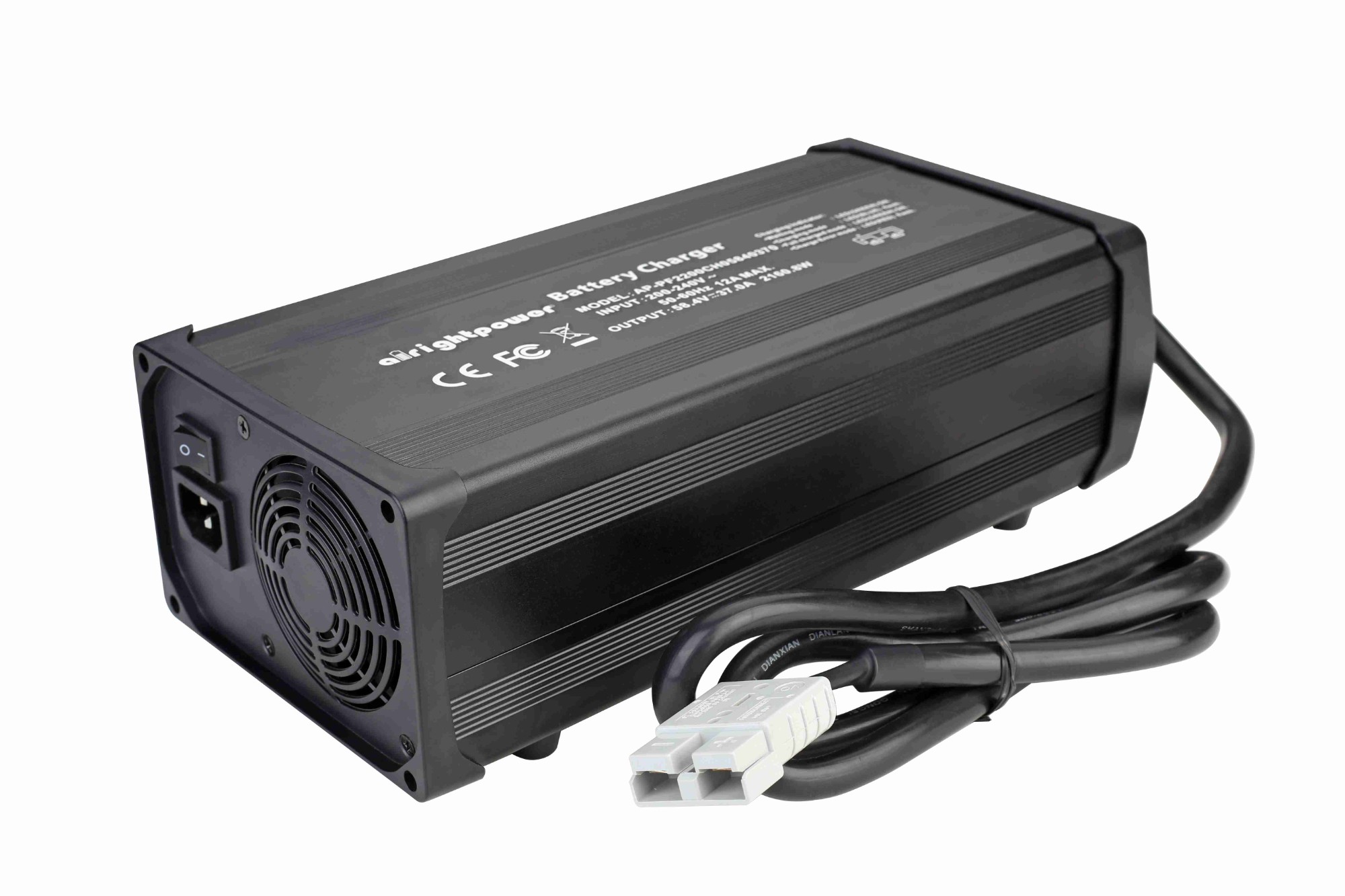

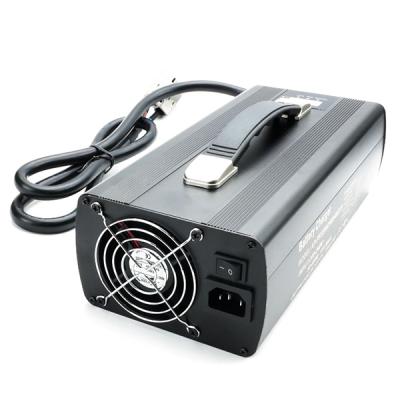

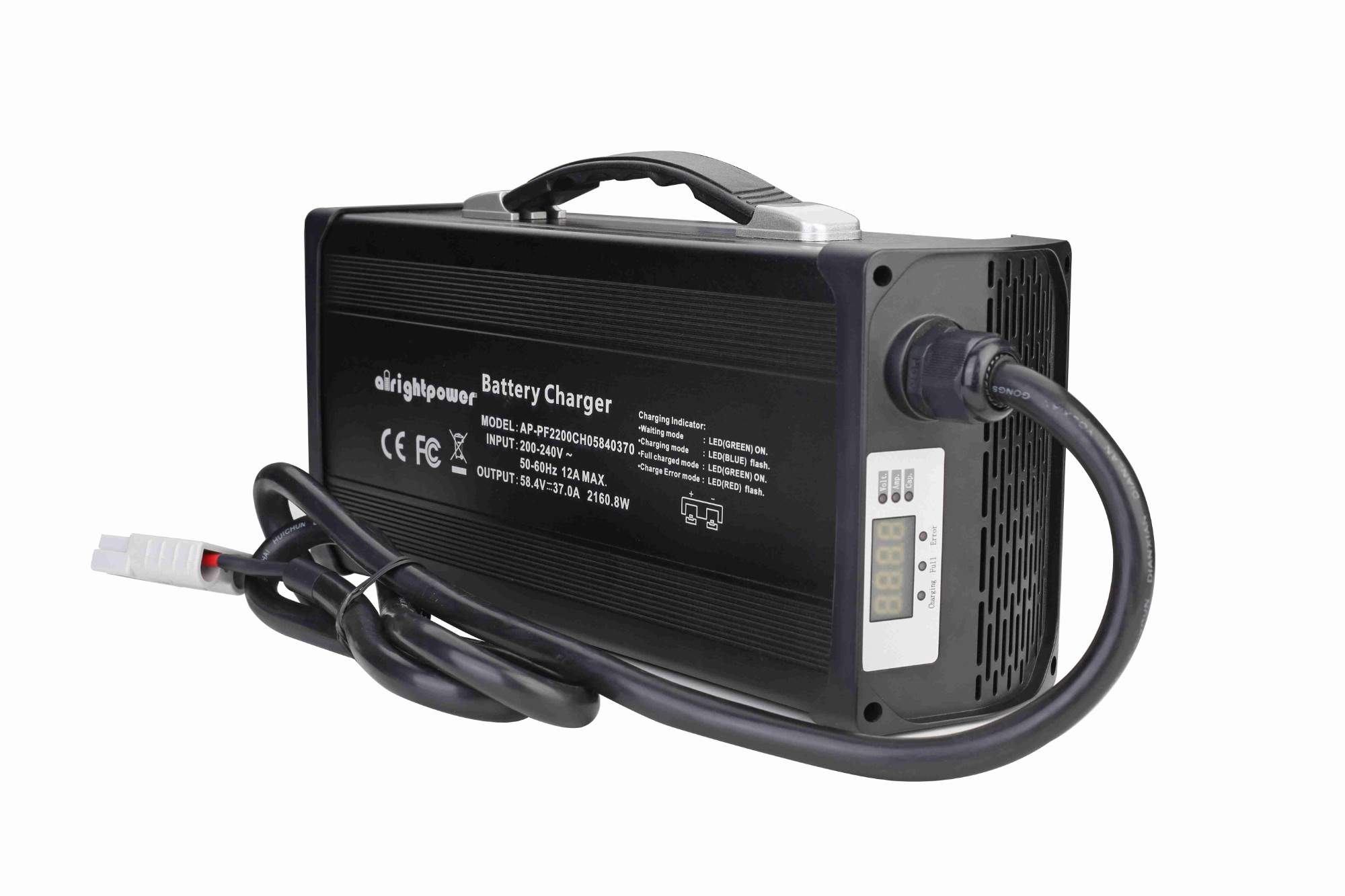

72V25A Aluminum Charger Cooling Fan | UL & CE Certified for Golf Cart/AGV | Fireproof IP20 & 3-Yr Warranty | Li-ion/Lead Acid Compatible 72V25A Aluminum Charger Cooling Fan | UL & CE Certified for Golf Cart/AGV | Fireproof IP20 & 3-Yr Warranty | Li-ion/Lead Acid Compatible

72V25A Aluminum Charger Cooling Fan | UL & CE Certified for Golf Cart/AGV | Fireproof IP20 & 3-Yr Warranty | Li-ion/Lead Acid Compatible

Input Voltage：100-240V AC 50/60Hz (Auto-Sensing)
Rated Output：72V DC 25A ±1% (CC/CV Mode)
Housing Material：Fireproof Aluminum (UL94 V-0+IP20)
Cooling System：fan (loanword)
Operating Temp.：-10℃~+40℃
Certifications：UL1310/CE/FCC/RCM/PSE (Certificates Available)
Protection Features：OVP/OCP/SCP/Short-Circuit/Reverse Polarity
Fire Safety：V-0 Flame Retardant + Spark-Free Connectors
EMC Compliance：EN55032 Class B + EN61000-6-2
Battery Types：Li-ion/LiFePO4/Lead-Acid (12V-72V Configurable)
Veh


Product Parameters


Input Volt:100-240VAC 50HZ/60HZ
               CVCC
Efficiency
92%
Leakage A
<3.5mA
Operating Humidity
5%-95% RH Non-condensing
Altitude
2000m
Operating Temperatue
-10℃—+40℃
Storage Temper
 -40℃-+85℃
Safety Certification

FCC,KC,PSE,GS,RCM,UKCA,UL,CCC,CE,CQC,EESS
Suitable battery Type
Lead Acid/LiFePo4/Li-ion/Lipo/Nicd/Nimh/Sodium etc, OEM &ODM
Power on srate

LED is green light

   Charging state
LED is Red ligh
Protection
Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity
Output short circuit
The charger will automatically shut down when a shotcircuit occurs on the charger output.
Switch AC power back on and off to restore output
Outprt overvoltage protectionWhen the DC output voltage≥1.05*Vout,the charger turms of the outpur.Switch AC power back on and off to restore output
Output overcurrent protectionWhen the charger output current ≥1.1*Iout,the charger tums off the output.Switch AC power back on and off torestore output
Reverse polarity pprotectionWhen the battery's positive and negative terminals arereversely connected to the charger output, the chargerwill automatically shut down.Switch AC power back on and off torestore output
Advantage

Low surge current, flyback input full voltage, small output voltage ripple

OEM,ODM,5 years warranty

Benbv Tech co.,ltd
Package Contents

The packing box contains the product name, model, manufacturer's logo, inspection

certificate from the manufacturer's quality department, and the date of manufacture.



Specification and model

LiFePO429.2V70A43.8V47A58.4V35A73V28A87.6V24A
lithium battery29.4V70A42V50A54.6V35A71.4V28A84V24A
Lead-acid24V70A36V50A48V35A60V28A 72V24A
